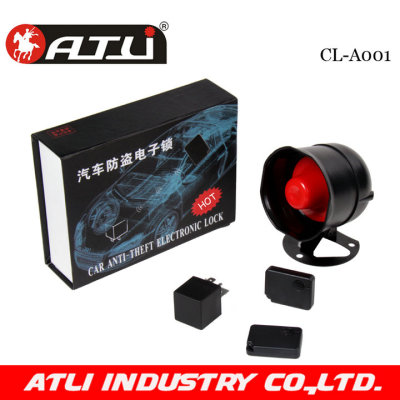

Product features:

1.The anti-theft lock is comprised of RF relay, portable identity card and insertion identity card.

2.Product features: directly replace the relay of fuel line of the automobile, and wire free. 3.Applicable for more than 300 models from Europe, America, Japan and Korea .

Installation:

I. Wire-free direct insertion installation: Of the controlled automobile, open the relay box, and find the relay with the same size of this ATLI relay and is the relay of the control fuel pump. The relay can be found as follows: find the relay with the same size of this ATLI relay, remove the relay, start the automobile (at the origin place, neutral), if the automobile is flameout several minutes later, insert the relay and the restarting the automobile is normal. If the relay is the same with one of the four 4ATLI relays described in the product list, the relay can be replaced by this ATLI relay. (The removed relay shall be the same with pin 85 and pin 86 (pin 1 and pin 2) of this RF relay, which are pins of the relay coil)

2.This ATLI relay can replace ON relay and other electromagnetism relay, which are installed with professional’s guide.

Standard :

1. Portable identity card :

CR2450 battery included

 Battery life 2 years,

Environment temperature -20-50°C

2.ATLI relay specifications and technical parameters :
