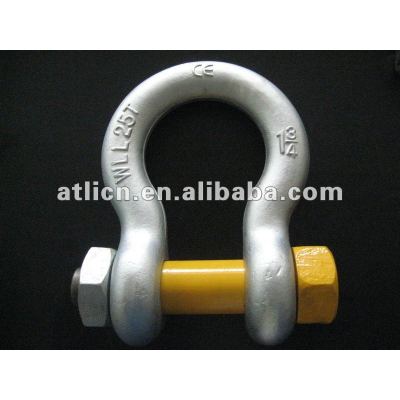

US G-209 forged shackle rigging hardware
Carbon steel or stainlesssteel;
Professional manufacture for rigging.
Detail Information
G-209 | ||
W.L.L | SIZE | N.W |
ton | inch | kg |
0.3T | 3/16 | 0.022 |
0.5T | 1/4 | 0.050 |
0.75T | 5/16 | 0.080 |
1T | 3/8 | 0.135 |
1.5T | 7/16 | 0.195 |
2T | 1/2 | 0.300 |
3.25T | 5/8 | 0.610 |
4.75T | 3/4 | 1.070 |
6.5T | 7/8 | 1.700 |
8.5T | 1 | 2.270 |
9.5T | 1-1/8 | 3.220 |
12T | 1-1/4 | 4.300 |
13.5T | 1-3/8 | 6.010 |
17T | 1--1/2 | 7.800 |
25T | 1-3/4 | 13.800 |
35T | 2 | 20.400 |
55T | 2-1/2 | 38.500 |
85T | 3 | 64.500 |
US G-209 forged shackle rigging hardware
Screw pin anchor shackles meet the requirement of Federal Specification RR-C-271D Tyoe IVA,Grade A,Classe 2.
1. Type :US
2. Material:Carbon steel
3. Surface:Zinc electroplating,Hot Dipped Galva'.
4. Size:Customer design are available
5. Package:gunny bag/crates/jute bag/according to customersneeds
NOTE:*Drop forged ,quenched and tempered, whith alloy pins.
*Max proof load is 2.2 times the working load limit,min strength is 6 times the WLL.
Qingdao Xunfuda Hardware Factory is professional rigging manufacturer.
